Machining: A Tool Post Holder

I knew something was up when Jay was watching This Old Tony’s video about making Quick Change Tool Holders. Don’t get me wrong, I love watching This Old Tony’s videos. However, the fact that he specifically chose this video meant that he was mulling over an idea. And he was.

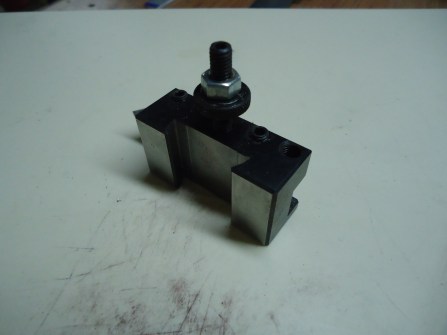

Tool Post Holder1

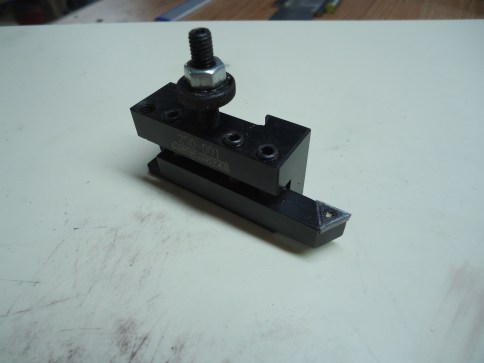

This is one of his current holders for his lathe.

Tool Post Holder2

When I asked why he decided to make his own he said it’s because he needed more. I guess he could have purchased a set of four holders, but he only needed two in the set. The other two were ones that he already has a bunch of and doesn’t need more. Also, he said that he wanted to challenge himself to build multiples of a part that requires tight tolerances.

Tool Post Holder3

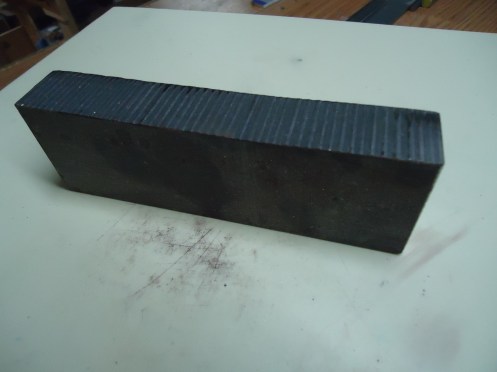

He started out with a single block of material.

Tool Post Holder4

He cut the block down into individual pieces. That was loud. I was in the bedroom, which is directly above his metal-cutting bandsaw, and the floor was vibrating. Bob was not impressed.

Bob In Bed 05 2017

One of the tough aspects of the holders are the dove tails that are necessary to fit onto the machine and lock into place.

Tool Post Holder5

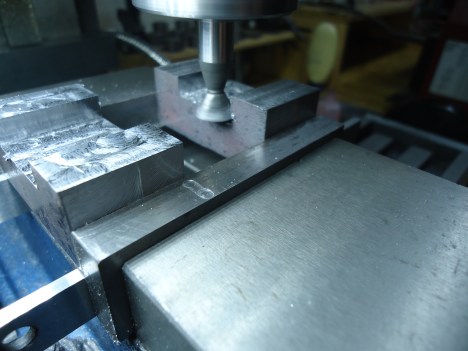

This required a lot of measuring, removing small amounts of material, measuring some more, etc.

Tool Post Holder6

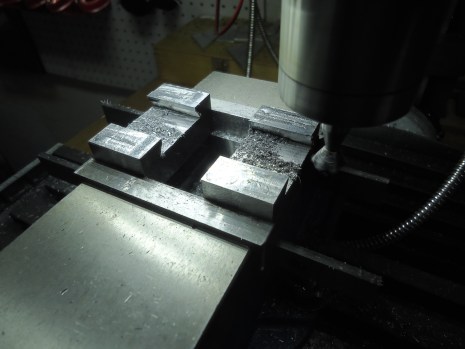

This was rough and took a lot of time. Then a box showed up on the porch and inside was a material waterer.

Tool Post Holder7

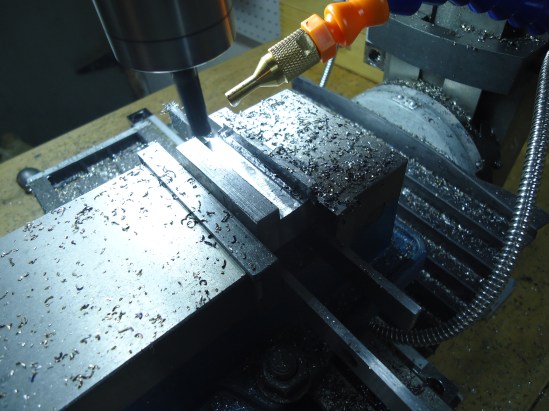

Somehow this helps the metal piece to ripen.

Tool Post Holder8

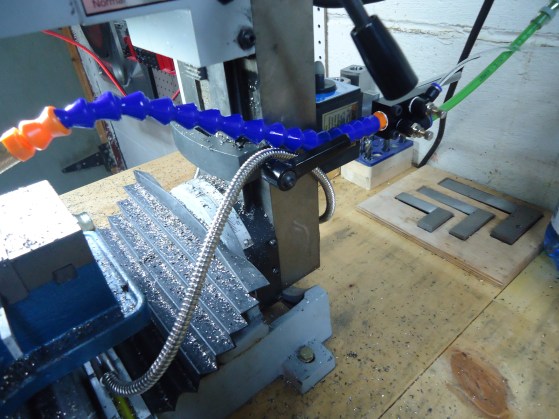

I guess it’s just a little mister to keep your material fresh.

Tool Post Holder9

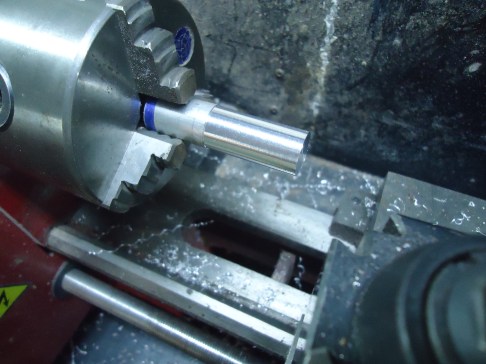

The other part of the holder includes some bolt-like things. So Jay made some of those, too.

Tool Post Holder10

“Gnurly, dude!”

Tool Post Holder11

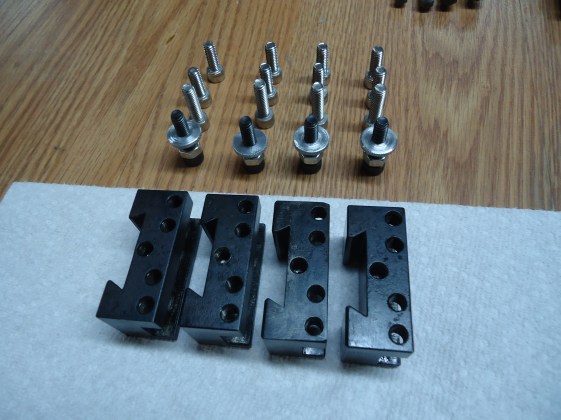

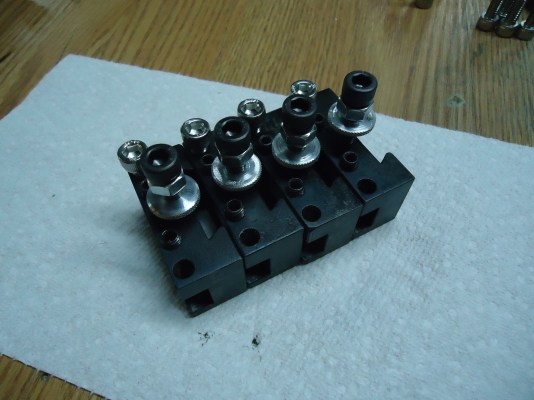

And there you have it… four new tool holders for his lathe.

And apparently they all fit and have been used.

Tool Post Holder12

Way to go, Jay!
